Click here to download installation instructions (PDF)

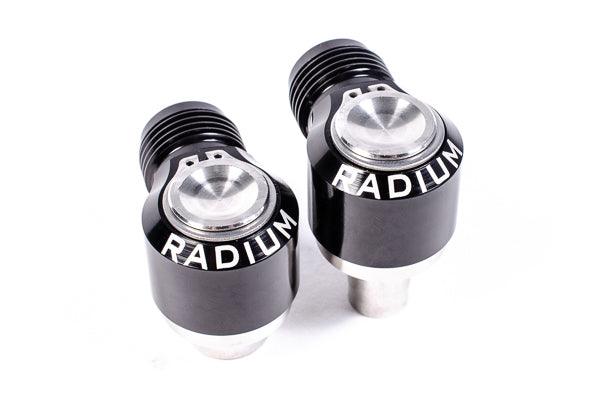

FEATURES
-Stainless/Aluminum Construction
-Low Profile 10AN Male Fitting
-Anodized and Laser Engraved
-Swivel Action with Viton O-Rings
-Simple Press-Fit Installation
Refer to the table below for fitment information with popular Toyota engines. If an engine is not listed, fitment information has never been confirmed.
20-0409
This fitting is a direct replacement for the crankcase vent press-in located on the exhaust side valve cover for the following engines:
Toyota 2JZ-GTE VVT-i
Toyota 2JZ-GTE Non VVT-i
Toyota 2JZ-GE VVT-i
Toyota 2JZ-GE Non VVT-i
20-0509
This fitting is a direct replacement for the crankcase vent press-in located on the exhaust side valve cover for the following engine:
Toyota 1JZ-GTE VVT-i
20-0609
This fitting is a direct replacement for the crankcase vent press-in located on the exhaust side valve cover for the following engine:
Toyota 1JZ-GTE Non VVT-i
20-0408
This fitting is a direct replacement for the PCV valve located on the intake side valve cover for the following engines:
Toyota 1JZ-GTE VVT-i
Toyota 1JZ-GTE Non VVT-i
Toyota 2JZ-GTE VVT-i
Toyota 2JZ-GTE Non VVT-i
Toyota 2JZ-GE Non VVT-i
Toyota 2JZ-GE VVT-i (2000-May 2002 ONLY)
NOTE: 20-0408 will work in many Toyota/Lexus models, some are listed below. If the PCV valve is mounted to the valve cover with rubber grommet P/N: 90480-18001 (shown below), than Radium P/N: 20-0408 will work.
4RUNNER
CAMRY
CARINA 2
CELICA 5S-FE
CELICA 7A-FE
CHASER (excluding 2JZ-GE VVT-i)
COASTER
COROLLA SPRINTER
CORONA FR
CRESSIDA
CRESTA
CROWN (excluding 2JZ-GE VVT-i)
ES300
GS300 (excluding 2JZ-GE VVT-i)
GS430
HIACE S.B.V
HILUX
IS200
IS300 (2000-MAY 2002 ONLY)
LAND CRUISER
LS400
LS430
LX470
MARK 2 BLIT (excluding 2JZ-GE VVT-i)
MR-2 5S-FE
ORIGIN (excluding 2JZ-GE VVT-i)
SC300
SC430
SEQUOIA
SOARER (excluding 2JZ-GE VVT-i)
STARLET
SUPRA 2JZ-GTE
T100
TACOMA 3RZ-FE
TACOMA 2RZ-FE
TUNDRA 2UZ-FE
