Tuned By Shawn 0-150PSIg Liquid Pressure Sensor

Regular price $125.00

TBS-03110

Tuned By Shawn 0-150PSIg Liquid Pressure Sensor | TBS-03110

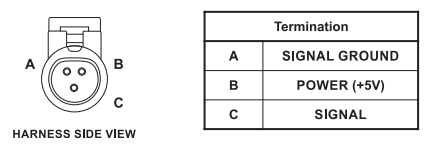

If your looking to purchase an aftermarket Liquid Pressure Sensor for Fuel or Oil this is what Tuned by Shawn recommends. These sensors have 3 wires going to them - 5V power, Sensor ground, and Signal Output. Please refer to the diagram loaded in the product images for sensor pin locations.


    What is included?

    • 0-150PSIg pressure sensor
    • Connector Kit

    Specifications:

    • 1/8 NPT Sealing Thread
    • 0.5 to 4.5 volt ratiometric output (0 psi at 0.5 volts and 150 psi at 4.5 volts, linear between these points)
    • 3-way circular GT150 / MP150 connector
    • Requires 5 volt DC supply voltage and analog ground
    • Accuracy: ±0.15 %FSS typ.
    • Temp Drift: <0.50% Full Scale
    • Stability: <0.25% Full Scale/Year
    • Operating Temp: -40C to 125C
    • Burst Pressure: 1000PSI
    • Response Time: 1 ms (10% to 90% step change in pressure)
    • Wetted Materials: 304L Port & 316L Stainless Steel diaphragm
    • Vibration: 20G’s peak to peak sinusoidal
    • Weight: <30g
    • Supply Current: 5mA MAX. at 5 Vdc
    • Installation torque: Two to three turns from finger tight
